    AMD Fenghuang 15FF: The "all AMD'' Kaby Lake G competitor

    Ryzen APU

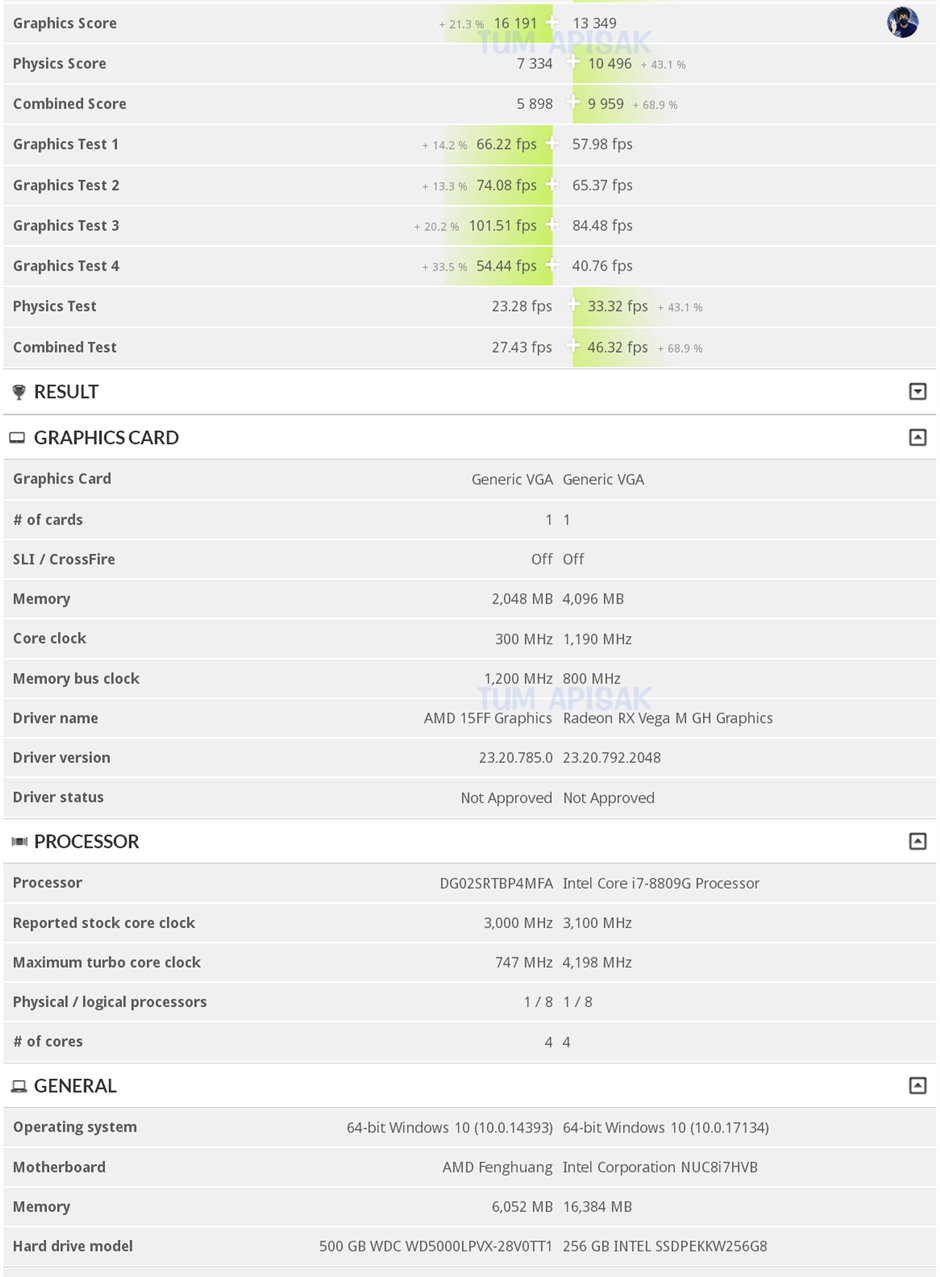

    AMD promised to demonstrate "never-seen-before" hardawre at Computex, and one of this products might have been filtered through the 3DMark benchmarking software, where an APU known as "AMD Fenghuang 15FF" with the code name DG02SRTBP4MFA has recently appeared. This APU, still in the testing phase, hides in its interior 4 Zen cores with 8 processing threads at a base frequency of 3.00 GHz (unknow turbo for now).

    AMD Fenghuang APU


    The intresting thing about this product is that we are talking about a beefy APU with an extremely powerful GPU, even more than the recently launched with Kaby Lake G (RX Vega M GH). Taking into account that AMD practically offers the same IPC as Intel with the Ryzen architecture, it was a matter of time for them to offer their own high end APU version with the same Vega architecture. The integrated graphics, (probably named Radeon RX Vega 28), is manufactured with the 14nm FinFET node, and houses 1792 Stream Processors, 112 TMUs and 64 ROPs. Although the core speed is not known, we know that it is paired by 2 GB of HBM2 @ 2.40 GHz memory which, together with a 1024-bit memory interface, yields a bandwidth of 307.2 GB/s.

    Specifications compared to Kaby Lake G

    Graphics NameAMD Radeon RX Vega 28 (Fenghuang 15FF)AMD Radeon RX Vega 24AMD Radeon RX Vega 20
    Graphics Version AMD Radeon RX Vega Graphics AMD Radeon RX Vega M GH Graphics AMD Radeon RX Vega M GL Graphics
    GPU Architecture Vega Vega Vega
    Process Node 14nm FinFET 14nm FinFET 14nm FinFET
    Compute Units 28 CUs 24 CUs 20 CUs
    Stream Processors 1792 SPs 1536 SPs 1280 SPs
    TMUs / ROPs 112 / 64 96 / 64 80 / 32
    Base Clock TBD 1063 MHz 931 MHz
    Boost Clock TBD 1190 MHz 1011 MHz
    FP32 Performance (Boost Clock) TBD 3.7 TFLOPs 2.6 TFLOPs
    VRAM 2 GB HBM2 4 GB HBM2 4 GB HBM2
    Memory Bus 1024-bit 1024-bit 1024-bit
    Memory Clock 2.4 Gbps 1.6 Gbps 1.4 Gbps
    Memory Bandwidth 307.2 GB/s 204.8 GB/s 179.2 GB/s

    Given this specifications, we might expect performance around RX 580/GTX 1060 level, which is impressive for an APU.
